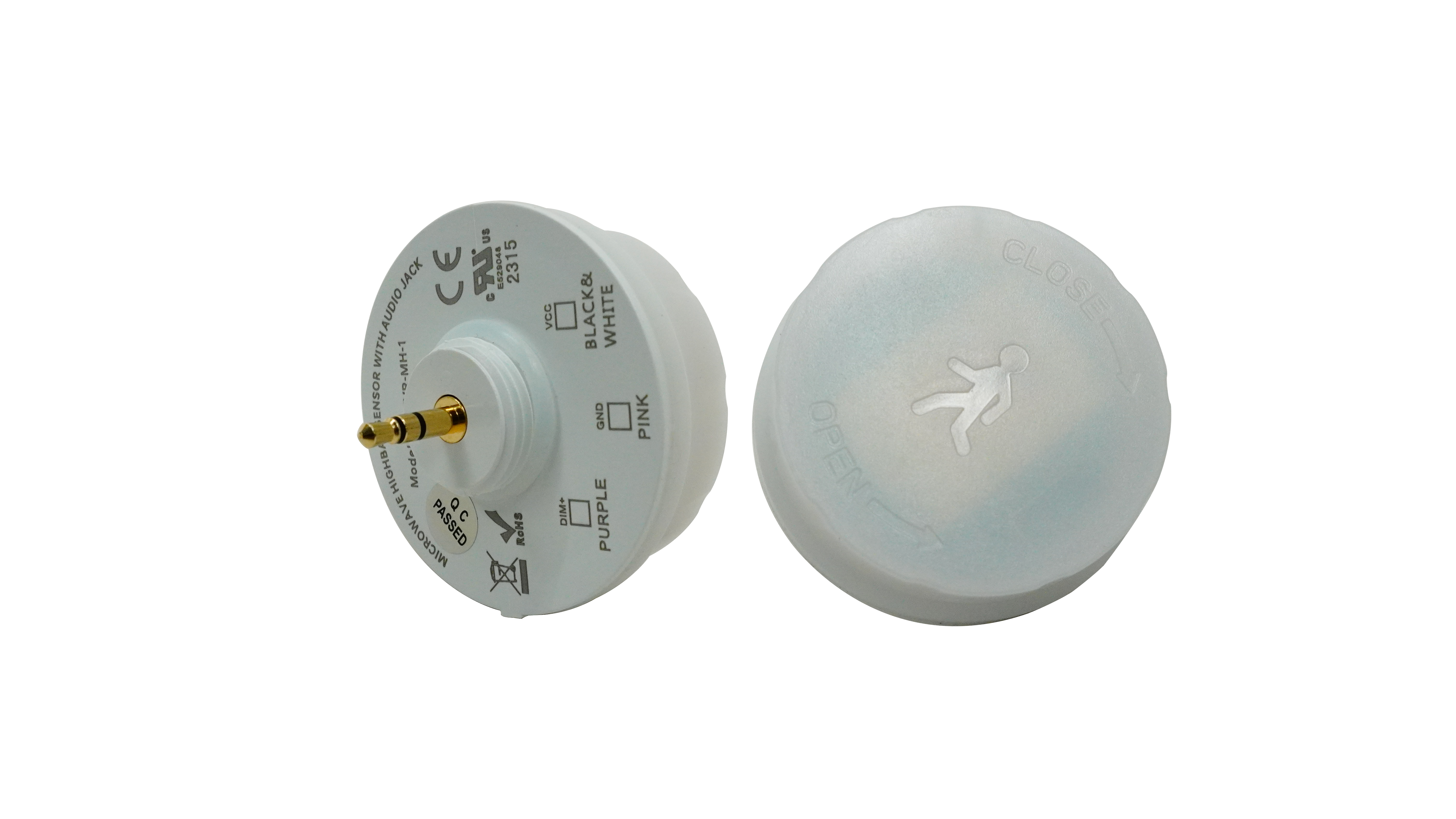

Ortech PNP-SENSOR (Microwave sensor head, 12VDC powered with remote control)
$19.07
SKU PNP-SENSOR
Description:
- Bi-level dimming, daylight threshold and dusk/dawn function
- With 3.5mm Jack, suitable for UFO high bay, Linear high bay, Canopies and Area lights application
- Highest mounting height is 12m
- Able to differentiate artificial light brightness from natural light after installed inside the fixture, and automatically turn off light when ambient brightness exceeds preset lux level
- Suitable for indoor application, half/completely outdoor environment conditions might be captured as moving signals to trigger the sensor
| Frequency | 5.8GHz±75MHz |
| Microwave Power | <0.3mW |
| Installation Height | 12m/39ft Max. |
| Detection Distance | ≥3m/9ft |
| Warranty | 5 years |
| Detection Area | 25%/50%/75%/100% |
| Holdtime | 5s/30s/1min/3min/5min/10min/20min/30min |
| Daylight Threshold | Disable/ 2lux/ 10lux/ 30lux/ 50lux/ 80lux/ 120lux |
| Standby Dimming Level | 10%/20%/30%/50% |
| Standby Period | 0s/10s/30s/1min/5min/10min/30min/60min+∞ |
| Input Range | 12VDC |
| Voltage Range | 10-15VDC |
| Current | ≥30mA |
| Connection | 12VDC input |
| Operating Temp. | -20°C~+60°C |
| Case Quantities | 100 |
