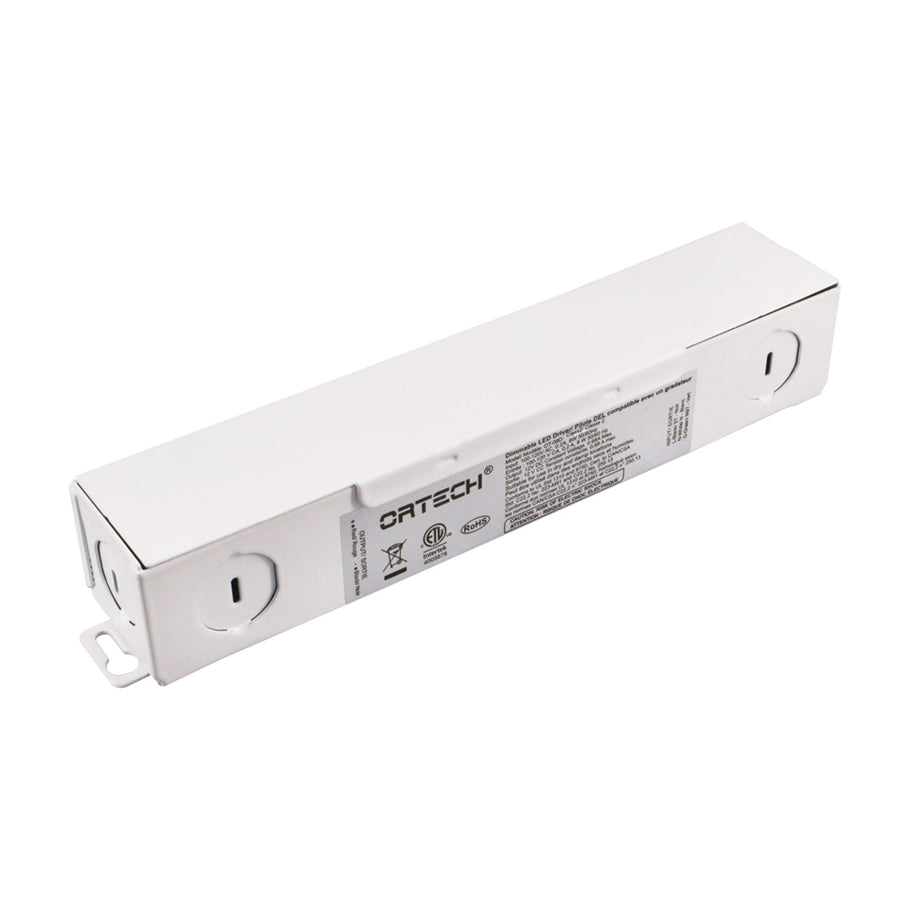

Ortech OT-08D (Maximum 8W class 2 Driver for LED lighting and moving sign applications) **20pc**
$407.40
SKU OT-08D-10pc
Description:
- Suitable for dry location
- High efficiency: up to 80%
- Strong compatibility, flicker-free dimming
- Constant voltage phase TRIAC dimmable driver
- Integrated junction box for hard wire installation
| Input Voltage | 100-130V AC |
| Output Voltage | 12V DC |
| Max. Wattage | 8W |
| Amps | 0.65A |
| Voltage Range | 100-130V AC |
| Dimmable | Yes |
| Grade of Protection | IP 20 |
| Frequency Range | 47~63Hz |
| Power Factor | 0.6 (Full loading) |
| Efficiency (Typ.) | 80% |
| AC Current (Max.) | 0.17A |
| Short Circuit | Hiccup mode, recover automatically after fault condition is removed |
| Over Loading | ≤ 120% |
| Operating Temperature | -30°C to +45°C |
| Warranty | 5 years |
