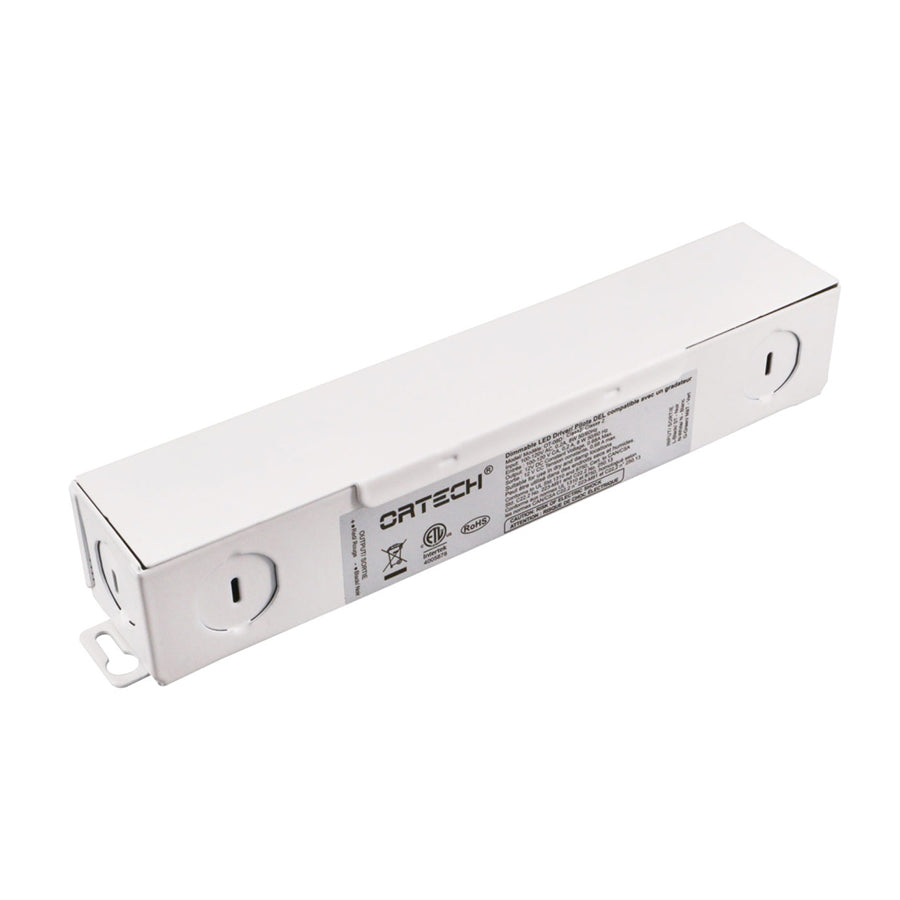

Ortech OT-24D (Maximum 24W class 2 Driver for LED lighting and moving sign applications) **20pc**
$666.60
SKU OT-24D-10pc
Description:
- Suitable for dry location
- High efficiency: up to 82%
- Strong compatibility, flicker-free dimming
- Constant voltage phase TRIAC dimmable driver
- Integrated junction box for hard wire installation
| Input Voltage | 100-130V AC |
| Output Voltage | 12V DC |
| Max. Wattage | 24W |
| Amps | 2A |
| Voltage Range | 100-130V AC |
| Dimmable | Yes |
| Grade of Protection | IP 20 |
| Frequency Range | 47~63Hz |
| Power Factor | 0.6 (Full loading) |
| Efficiency (Typ.) | 82% |
| AC Current (Max.) | 0.55A |
| Short Circuit | Hiccup mode, recover automatically after fault condition is removed |
| Over Loading | ≤ 120% |
| Operating Temperature | -30°C to +45°C |
| Warranty | 5 years |
