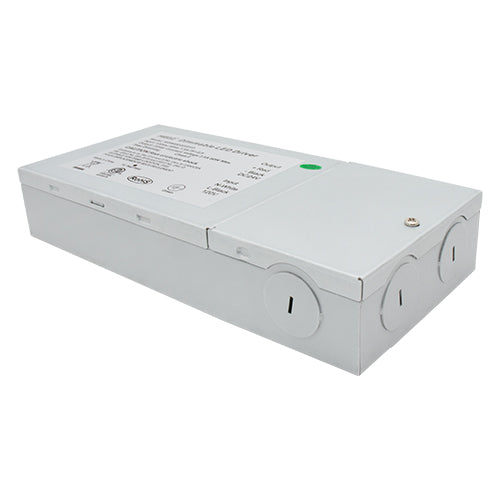

Ortech OT-48D (Maximum 48W class 2 Driver for LED lighting and moving sign applications) **20pc**
$888.80
SKU OT-48D-10pc
Description:
- Suitable for dry location
- High efficiency: up to 86%
- Strong compatibility, flicker-free dimming
- Constant voltage phase TRIAC dimmable driver
- Integrated junction box for hard wire installation
| Input Voltage | 108-132V AC |
| Output Voltage | 12V DC |
| Max. Wattage | 48W |
| Amps | 4A |
| Dimmable | Yes |
| Grade of Protection | IP 20 |
| Frequency Range | 47~63Hz |
| Power Factor | 0.6 (Full loading) |
| Efficiency (Typ.) | 86% |
| Rated Current | 4A |
| Short Circuit | Hiccup mode, recover automatically after fault condition is removed |
| Over Loading | ≤ 120% |
| Operating Temperature | -20°C to +40°C |
| Warranty | 5 years |
