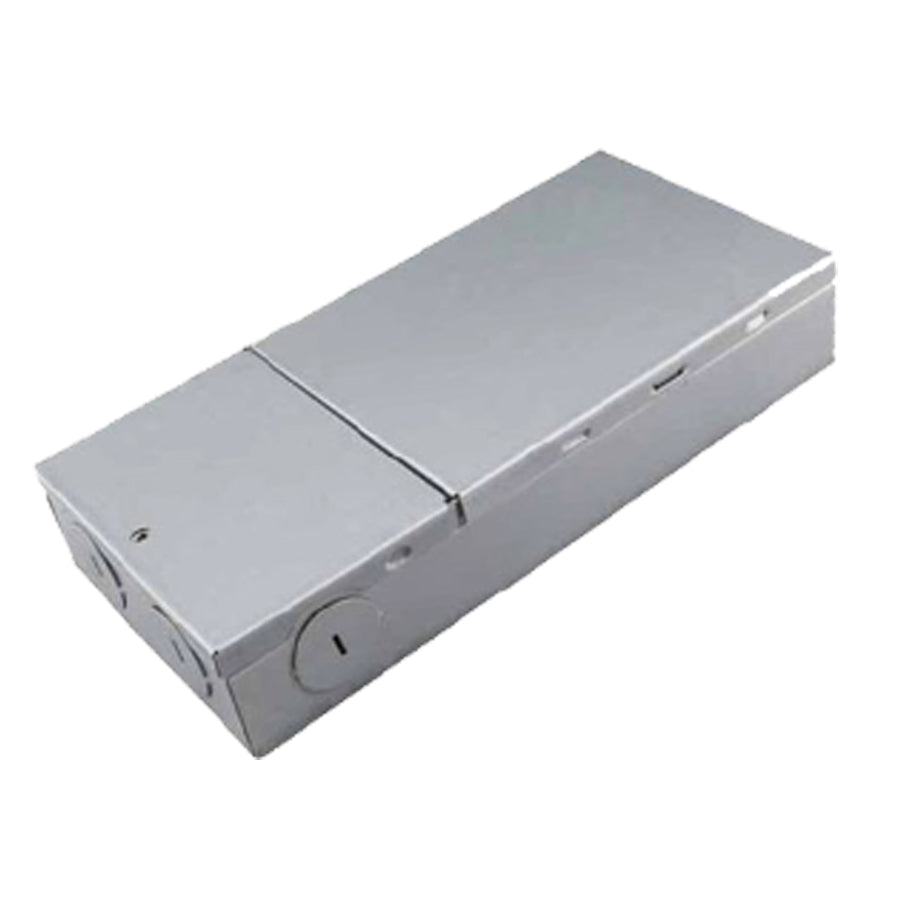

Ortech OT-60D (Maximum 60W class 2 Driver for LED lighting and moving sign applications) **20pc**
$1,111.20
SKU OT-60D-10pc
Description:
- Suitable for dry location
- High efficiency: up to 86%
- Strong compatibility, flicker-free dimming
- Constant voltage phase TRIAC dimmable driver
- Integrated junction box for hard wire installation
| Input Voltage | 108-127V AC |
| Output Voltage | 12V DC |
| Max. Wattage | 60W |
| Amps | 5A |
| Voltage Range | 100-130V AC |
| Dimmable | Yes |
| Grade of Protection | IP 20 |
| Frequency Range | 47~63Hz |
| Power Factor | 0.6 (Full loading) |
| Efficiency (Typ.) | 86% |
| AC Current (Max.) | 1.5A |
| Short Circuit | Hiccup mode, recover automatically after fault condition is removed |
| Over Loading | ≤ 120% |
| Operating Temperature | -20°C to +40°C |
| Warranty | 5 years |
