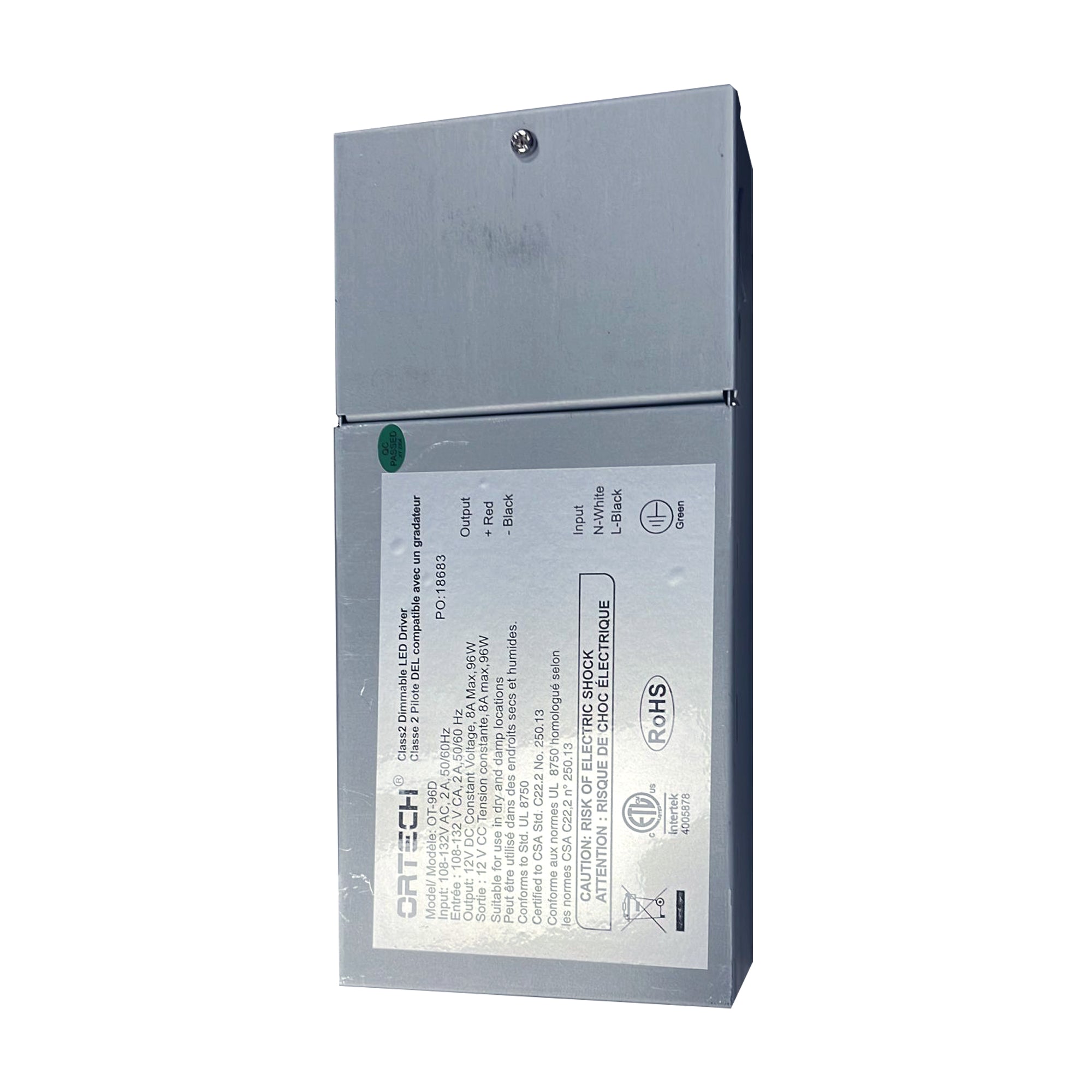

Ortech OT-96D (Maximum 96W class 2 Driver for LED lighting and moving sign applications) **20pc**
$1,407.40
SKU OT-96D-10pc
Description:
- Output constant voltage
- AC input: 108-132VAC
- High efficiency: up to 80%
- Protection: short circuit/Over voltage
- Integrated junction box for hard wire installation
- Fully isolated aluminum case - Cooling by air convection
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications and others
- Suitable for dry or damp location use
| Wattage | 96W |
| Input Output | 108-132V AC |
| Output Voltage | 12V DC |
| Rated Current | 4A |
| Short Current |
Hiccup mode,recover automatically affer fault condition is removed |
| Over Loading |
≤120% |
| Grade of Protection | IP 20 |
| Efficiency | 80% |
| Power Factor | >0.5 |
| Frequency | 60Hz |
| Dimming | Triac Dimming |
| Operating Temperature | -25ºC ~ +45ºC |
