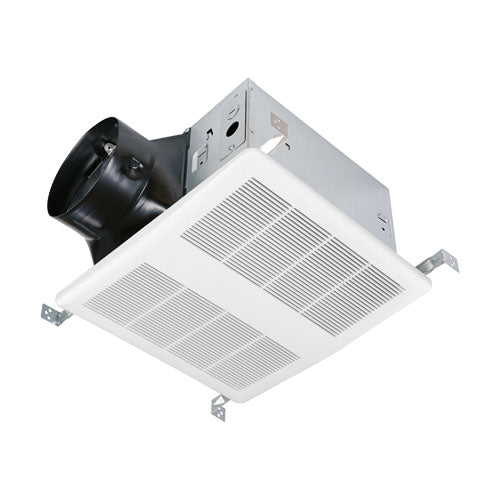

Ortech (ODD-110-18PB Multi speed Universal Series DC Motor Fan with built-in adjustable humidity sensor)
$118.75
SKU ODD-110-18BP
Description:
- Three fans in one housing your choice 80-110-140 CFM
- Built-in adjustable humidity sensor from 30-100%RH at standard
- All speeds have been individually performance tested and certified by HVI
140CFM
| Static Pressure (SP) | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.003 SP | 0.058 SP | 0.100 SP | 0.193 SP | 0.252 SP | 0.32 SP | 0.387 SP | 0.448 SP | 0.507 SP | 0.567 SP | ||||||||
| 151.3 CFM | 150.4 CFM | 150.3 CFM | 145.6 CFM | 146.6 CFM | 145.5 CFM | 147 CFM | 139.6 CFM | 114.3 CFM | 0.00 CFM | ||||||||
110CFM
| Static Pressure (SP) | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.001 SP | 0.058 SP | 0.102 SP | 0.166 SP | 0.249 SP | 0.308 SP | 0.366 SP | 0.436 SP | 0.522 SP | 0.558 SP | ||||||||
| 114.3 CFM | 114.5 CFM | 115.5 CFM | 113.0 CFM | 114.0 CFM | 112.5 CFM | 110.2 CFM | 110.0 CFM | 109.1 CFM | 0.00 CFM | ||||||||
80CFM
| Static Pressure (SP) | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.001 SP | 0.060 SP | 0.102 SP | 0.182 SP | 0.248 SP | 0.297 SP | 0.358 SP | 0.397 SP | 0.470 SP | 0.527 SP | ||||||||
| 88.3 CFM | 85.7 CFM | 82.8 CFM | 81.5 CFM | 83.5 CFM | 82.4 CFM | 81.6 CFM | 83.3 CFM | 81.3 CFM | 0.00 CFM | ||||||||
| Air Volume (CFM) | 80 / 110 / 140 |
| Noise (sones) | 0.3 / 0.3 / 0.4 |
| Fan Watts | 5.6W / 8.5W / 13W |
| Duct Diameter | 6" |
| Power Rating | 120V /60Hz |
| Housing Size | 11-3/8" x 10-1/2" x 7-5/8" |
| Grille Dimensions | 13" x 13-3/4" |
| Case Quantities | 1 |
