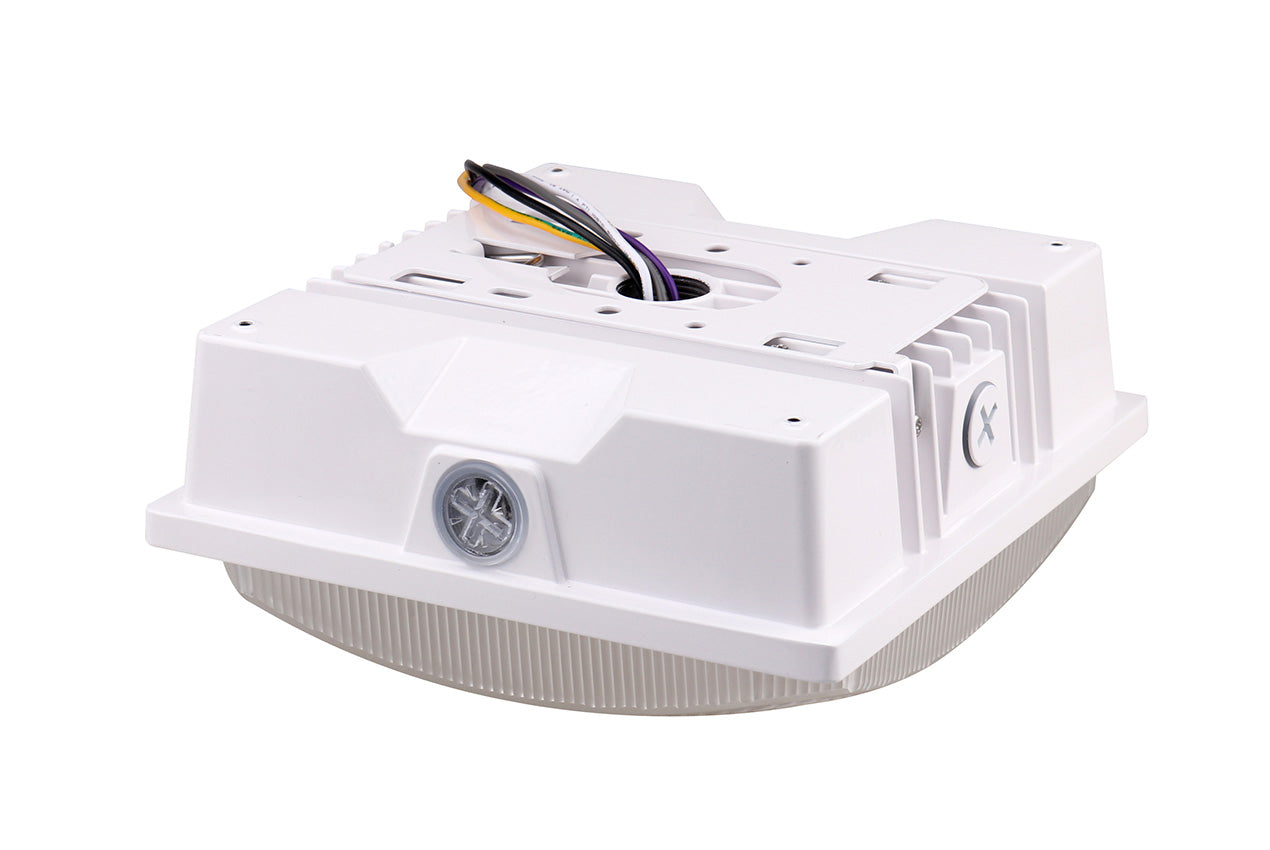

CSC LED - CP03-40W-3P-3CCT-UD-WH (CP03 Canopy Light 20W/30W/40W | 3CCT | 120-347V)
$156.40
SKU CP03-40W-3P-3CCT-UD-WH
- Power selectable (20W/30W/40W)
- Colour selectable (3000K/4000K/5000K)
- 6kV surge protection
- 0-10V dimming
- Faceted polycarbonate lens for superior glare control, fire, and vandal resistance
- Universal 120-347V input
- Dropped lens for improved beam angle allows for wider spacing of luminaires
Certifications Listed:
cUL, DLCPremium
CSC DLC Number:
S-ET054C
CSC LED Warranty:
5 Year Warranty
Product Number:
CP03-40W-3P-3CCT-UD-WH
Light Specifications
Beam Angle:
110
Colour Temperature:
3000K/4000K/5000K
CRI:
83
Dimmable:
0-10V
Efficacy:
123.36 LM/W
Initial Lumens:
4889lm
Life (L70):
>54000
Electrical Specifications
Amperage:
0.5 A
IP Rating:
IP65
Operating Temperature:
-40°C to 45°C
Power Factor:
0.9
THD:
15%
Voltage:
120-347V
Watts:
20W/30W/40W
